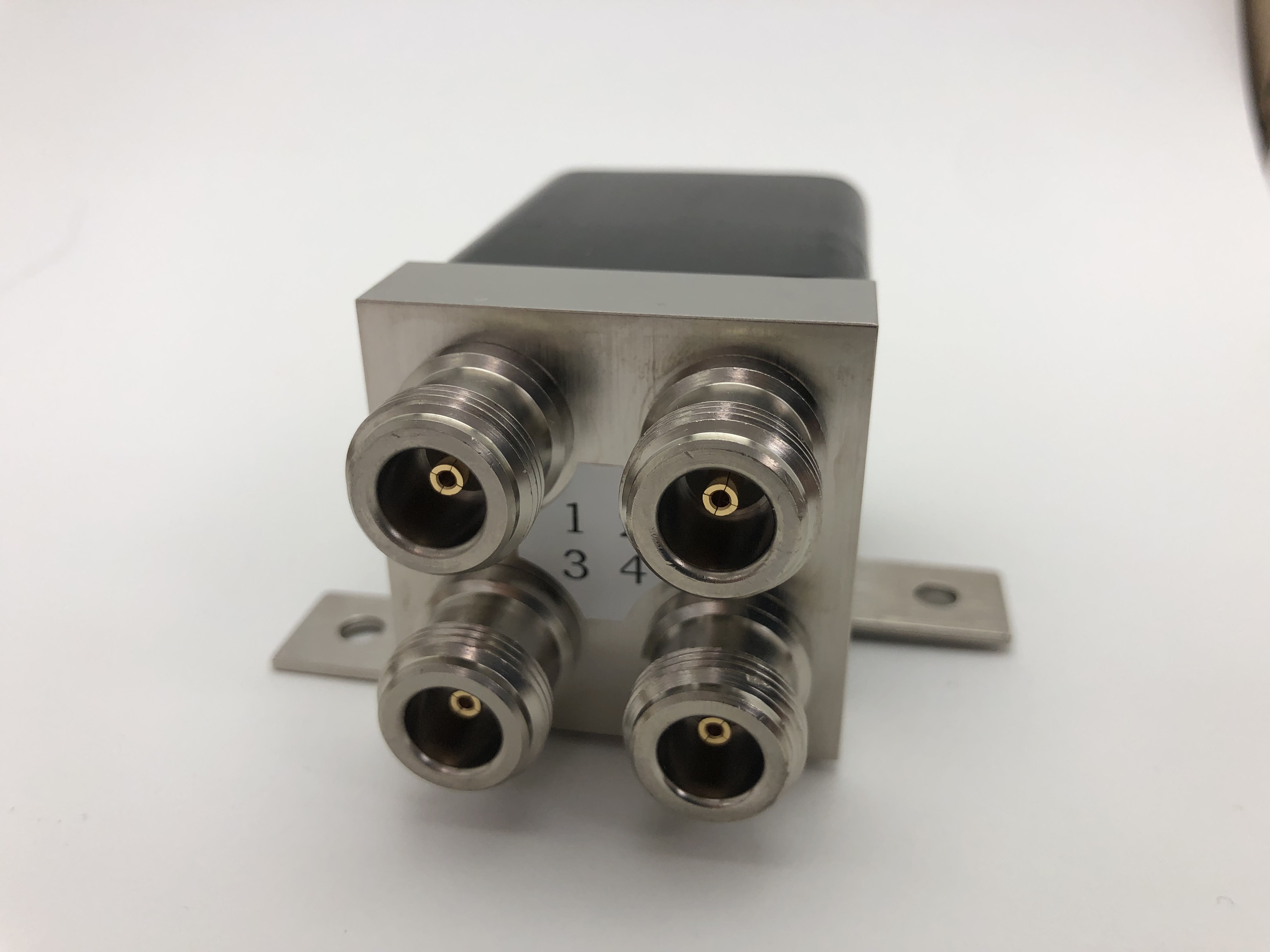

Description
| Frequency (GHz) | DC-1 | 1-2 | 2-3 | 3-4 |
| Insertion Loss (dB max.) | 0.10 | 0.15 | 0.20 | 0.25 |
| Isolation (dB min.) | 85 | 80 | 75 | 75 |
| VSWR (max.) | 1.1:1 | 1.15:1 | 1.25:1 | 1.3:1 |
| Average Power (Watts Typ.) | 550 | 400 | 325 | 275 |
| Actuating Current (mA max.): | 164 @ 28 Vdc @ 25 C |
| Temperature Range (in degrees): | -40 C to +85 C |
Outline Drawing and Schematic: RTL-TN1A4.pdf
Pricing offered herein only applies to products purchased and processed exclusively on-line with a valid credit card and shipped to a location with the U.S.A. Product purchased otherwise may be at a higher unit price.
For Higher Quantities or International Orders, Contact Factory
